Hp elitebook 665 g11 16" touchscreen notebook

USB board and motherboard removal

STEP 21.Remove three screws securing the USB board and disconnect the I/O cable from the motherboard.

STEP 22.Remove the USB board.

STEP 23.Remove eight screws attaching the motherboard to the top case.Disconnect the following color-coded cables:– Media card reader cable (orange).– Keyboard and keyboard backlight cables (green).– Touchpad cable (blue).– Speaker cable (pink).

Four screws color-coded in red are different from four screws color-coded in yellow.

STEP 24.Lift up and remove the motherboard from the top case.

Here’s the other side of the motherboard.

HP Pavilion 15-cs series laptop has a “non-removable” keyboard which is permanently attached to the top case. There is a way to separate the keyboard from the top case but it’s not easy. If the keyboard failed, it’s easier to replace the entire top case.

The touchpad, on the other hand, is easily removable.

Base cover and battery removal

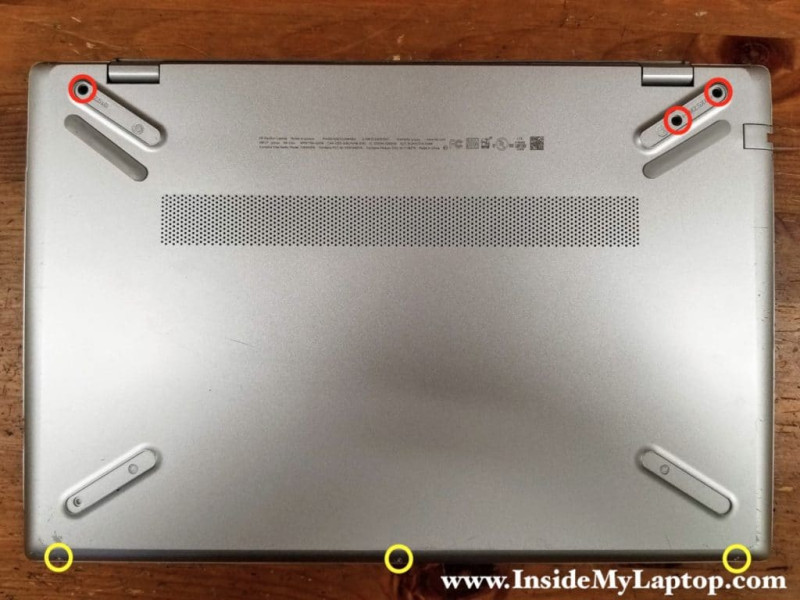

There are three screws hidden under the rear bottom feet. These feet are self-adhesive and can be easily removed.

STEP 1.Remove six screws securing the base cover.

STEP 2.Start separating the base cover from the top case assembly. I found it’s easier to remove the base cover if you start somewhere around the display hinges area.

STEP 3.Continue lifting up the base cover with your hands and remove it completely. You’ll have to apply some reasonable force to release multiple hidden latches securing the cover.

STEP 4.Remove four screws attaching the battery to the case.

STEP 5.Lift up and remove the battery. There is no battery cable, it’s plugged in directly into the motherboard.

HP Pavilion 15-cs laptop battery model: HT03XL.

DC jack and display panel removal

The DC power jack mounted under the right display hinge. Let’s remove it first.

STEP 14.Remove two screws securing the right display hinge. Un-route wireless card antenna cables from the guided path on the side of the speaker.

STEP 15.Lift up the right display hinge. Now we can access the DC power jack.

STEP 16.Unplug the DC jack cable from the motherboard. Un-route the cable from the guided path on the top case and the side of the speaker.

STEP 17.Lift up the DC jack from the case and remove it.

STEP 18.Remove two screws from the left display hinge. Disconnect the display cable from the motherboard.

The display cable can be removed after the connector is unlocked.

STEP 19.Lift up the left display hinge.

STEP 20.Lift up the top case assembly and remove it from under the hinges.

The display panel has been removed.

Description

This item is brand-new, factory sealed.

Package Contents:
EliteBook 665 16 inch G11 Notebook PC
Power Adapter

Features

Windows Hello Compatible: Yes

Package Contents: EliteBook 665 16 inch G11 Notebook PC
Power Adapter

Environmentally Friendly: Yes

Energy Star: Yes

Application/Usage: Premium Computing

Features:

Low Blue LightAnti-glare Screen

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Specs

Built-in Devices
Front Camera/Webcam	Yes
Infrared Camera	Yes
Finger Print Reader	Yes
Front Camera/Webcam Resolution	5 Megapixel
Power Description
Maximum Power Supply Wattage	65 W
Power Plug Type	Type C
Processor
Processor Core	Octa-core (8 Core)
Processor Manufacturer	AMD
Processor Threads	16
Processor Model	7735U
Maximum Turbo Speed	4.70 GHz
Processor Type	Ryzen 7
Chipset
Chipset Manufacturer	AMD
Physical Characteristics
Weight (Approximate)	3.84 lb
Height	0.43″
Width	14.1″
Depth	9.9″
Warranty
Additional Warranty Information	1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair.
Limited Warranty	1 Year
Battery Information
Number of Cells	3-cell
Memory
Installed Slot Memory	16 GB
Installed Slot Memory Configuration	1 x 16GB
System Memory Speed	4800 MHz
System Memory Form Factor	SoDIMM
Total Installed System Memory	16 GB
System Memory Technology	DDR5 SDRAM
Total Number of Memory Slots	1
Number of Occupied Memory Slots	1
Display & Graphics
Touchscreen	Yes
Graphics Memory Accessibility	Shared
Screen Resolution	1920 x 1200
Screen Size	16″
Display Screen Technology	In-plane Switching (IPS) Technology
Brightness	300 Nit
Screen Mode	WUXGA
Color Gamut	45% NTSC
Graphics Controller Manufacturer	AMD
Graphics Controller Model	Radeon 680M Graphics
Graphics Memory Technology	DDR5 SDRAM
General Information
Brand Name	HP
Manufacturer Website Address	http://www.hp.com
Product Type	Notebook
Product Name	EliteBook 665 16 inch G11 Notebook PC
Manufacturer	HP Inc.
Manufacturer Part Number	A1QZ1UT#ABA
Product Series	665 G11
Product Line	EliteBook
Input Devices
Keyboard Localization	English
Keyboard Backlight	Yes
Storage
Total Solid State Drive Capacity	512 GB
Drive Type	SSD
Interfaces/Ports
USB Type-C	Yes
USB Type-C Detail	2 USB Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4)
Network (RJ-45)	Yes
HDMI	Yes
Total Number of USB Ports	4
Network & Communication
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11ax
Ethernet Technology	Ethernet
Bluetooth	Yes
Operating System
Operating System Platform	Windows
Operating System	Windows 11 Pro
Operating System Language	English

HP Pavilion — 15-au139ur Технические характеристики продукта

номер продукта

1GN85EA

Название продукта

HP Pavilion — 15-au139ur

Микропроцессор

Процессор Intel Core i7-7500U (тактовая частота 2,7 ГГц с возможностью увеличения до 3,5 ГГц с помощью технологии Intel Turbo Boost, 4 Мбайт кэш-памяти, 2 ядра)

Память, стандартная

Память DDR4-2133 SDRAM, 8 Гбайт (1 x 8 Гбайт)

Видеокарта
